Products

Nexus

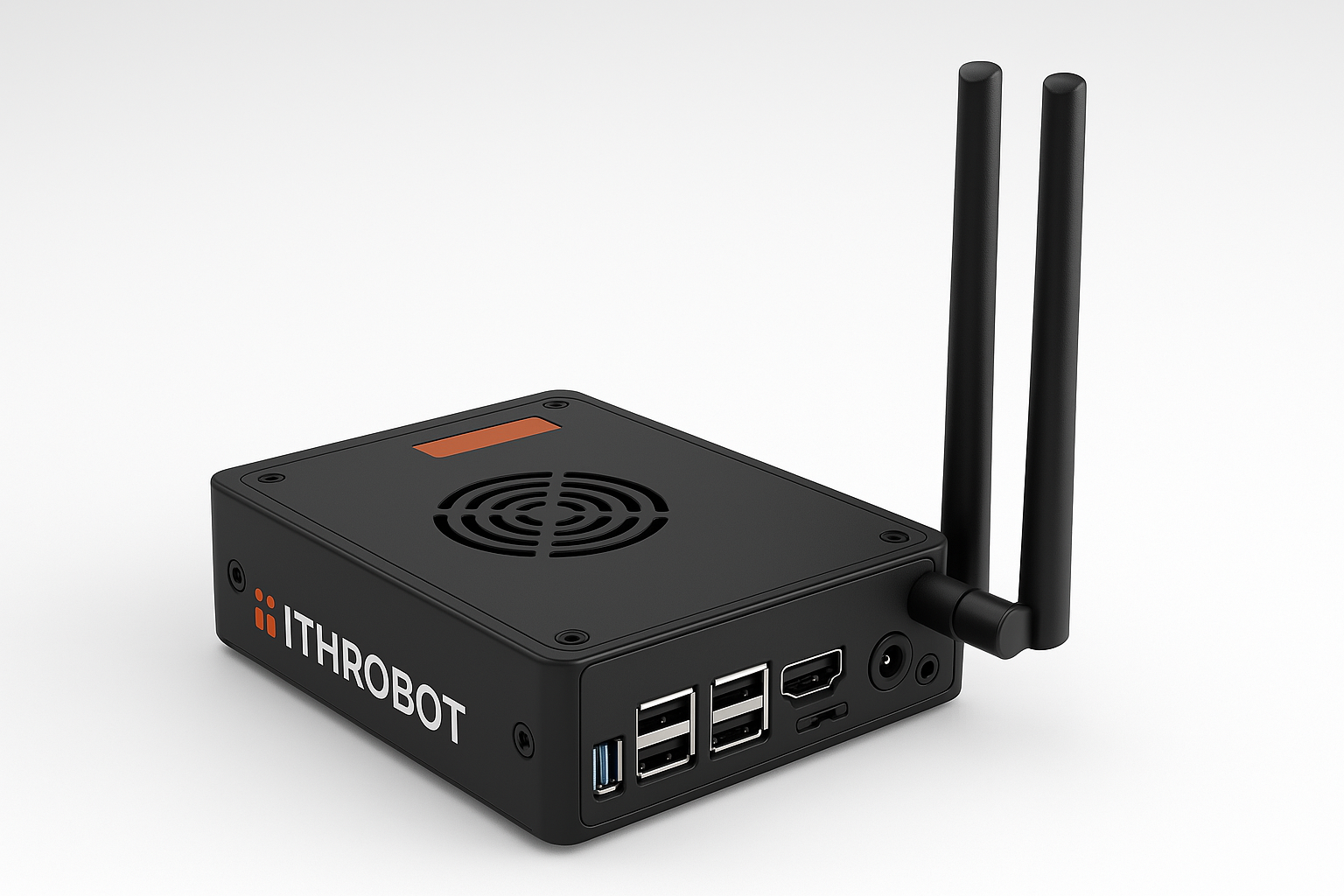

Multi-Sensor-Based Edge AI-Enabled Board Kit

Products

Nexus

Multi-Sensor-Based Edge

AI-Enabled Board Kit

Nexus
Applicable Solutions

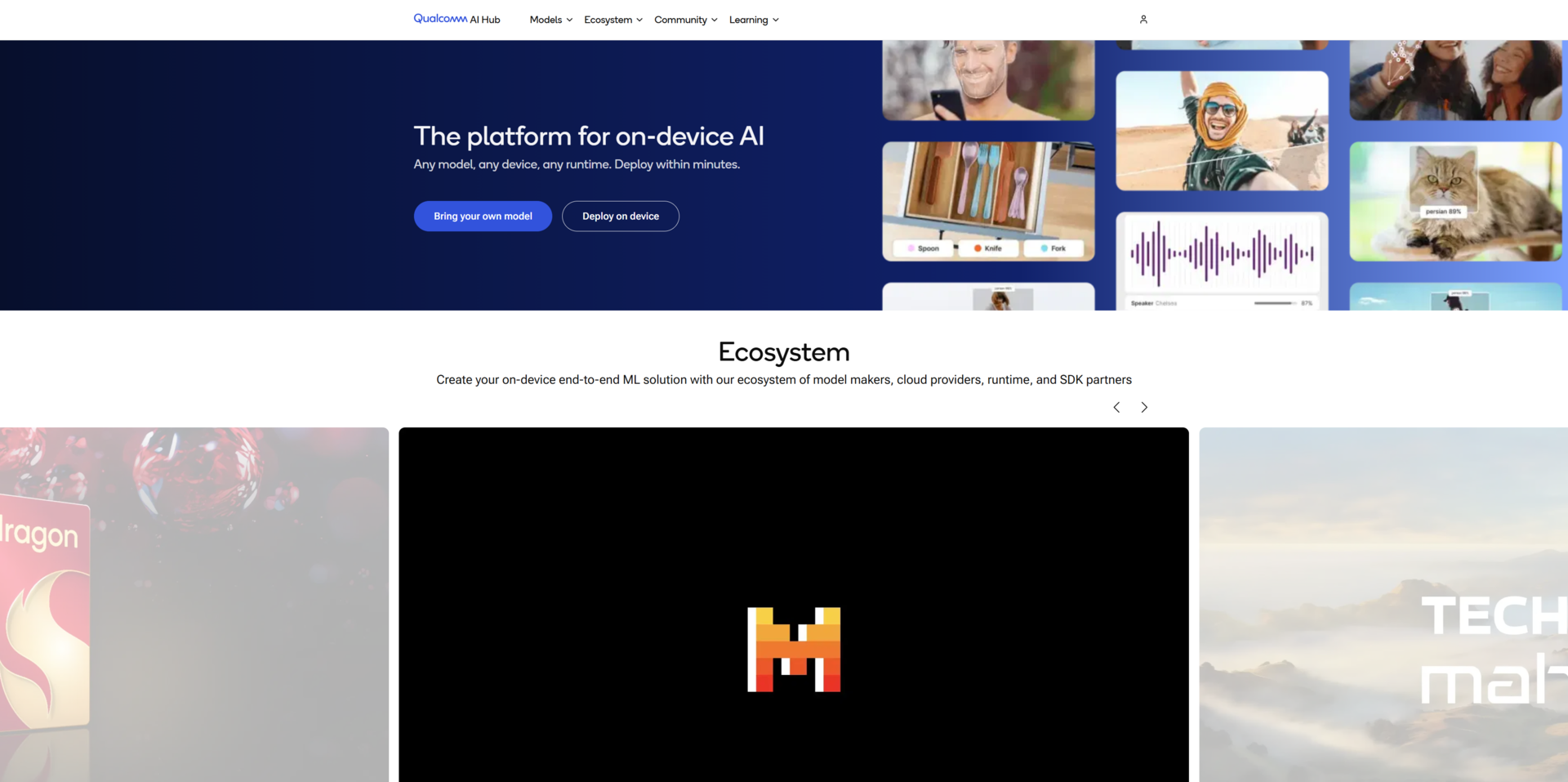

Run the Qualcomm AI Hub Example

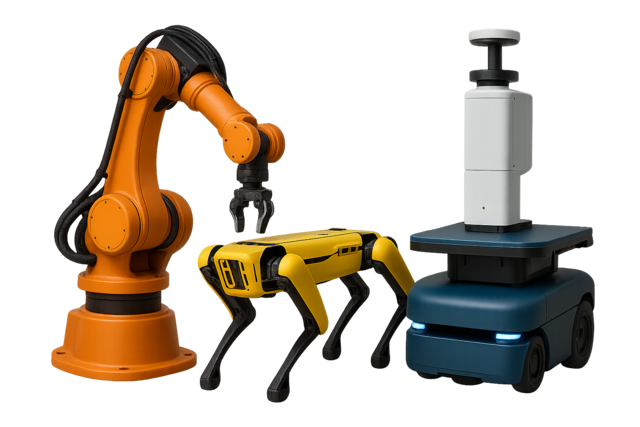

Use as a Part of a Robot

Support for Multiple Ports

Nexus

Applicable Solutions

Run the Qualcomm AI Hub Example

Support for Multiple Ports

Use as a Part of a Robot

Features
Run the Qualcomm AI
 Hub Example
Run a variety of DNN examples available on the Qualcomm AI Hub
 Edge AI can Infer
Perform real-time AI analytics without the cloud (optimize inference speed)

Multi-Sensor Support
Integrate RGB, LWIR, LiDAR, ultrasonic, and TVOC sensors on a single board
Compatible with
Robots and IoT Devices
Can be used as a component in industrial robots, autonomous robots (AMR), and more

Features

Run the Qualcomm
AI Hub Example
Run a variety of DNN
examples available on
the Qualcomm AI Hub
Edge AI can Infer

Perform real-time AI

analytics without the

cloud (optimize

inference speed)

Multi-Sensor
Support

Integrate RGB, LWIR,

LiDAR, ultrasonic, and

TVOC sensors on a

single board

Compatible with
Robots and IoT
Devices

Can be used as a component in industrial robots, autonomous robots (AMR), and more


Applications
AI Research and Development Kit

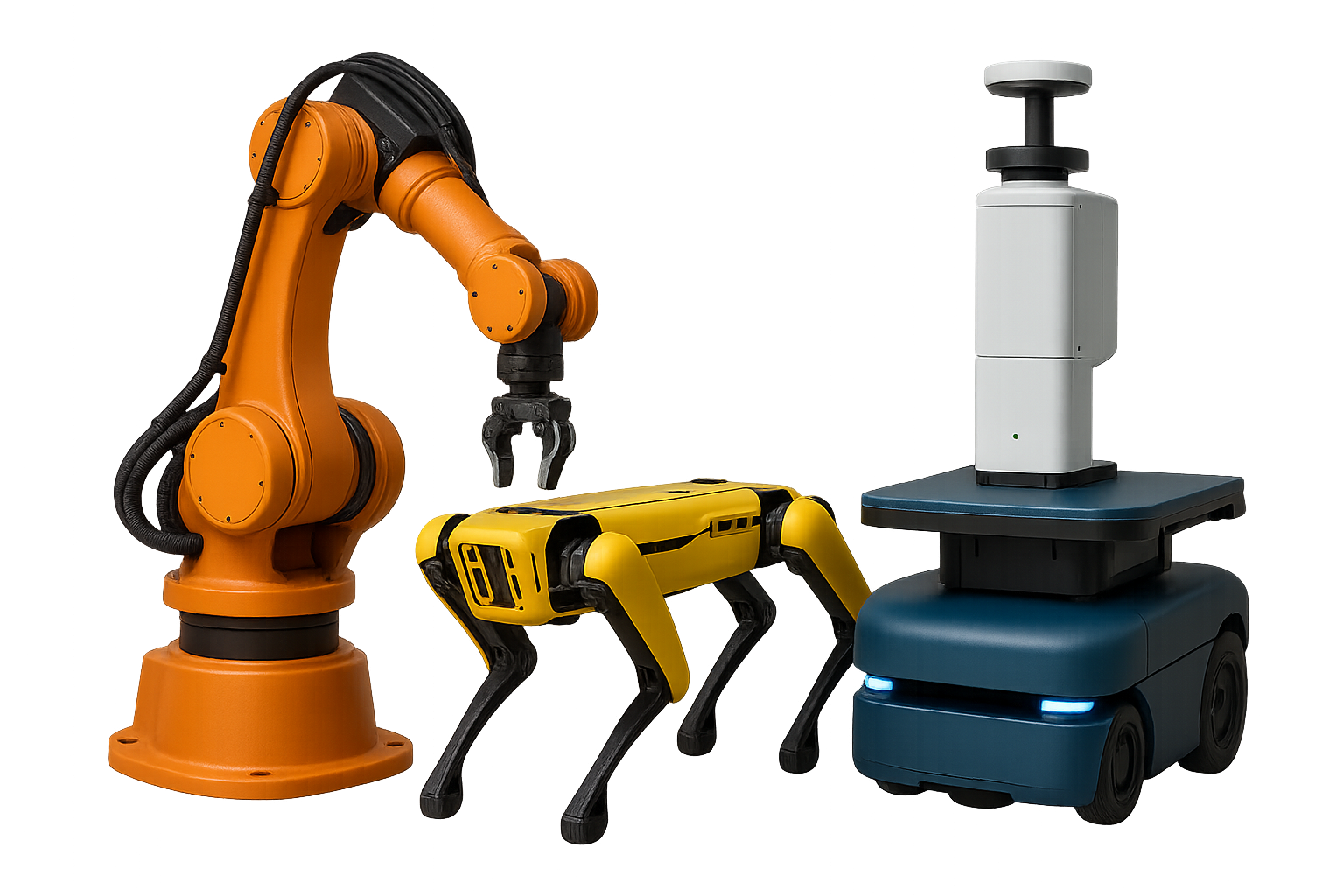

Robots and
Autonomous Systems


AI development board for AI researchers to develop customized AI solutions utilizing a variety of sensors

Can be used as a sensor and AI computation module for autonomous robots such as AMR, AGV, etc

Applications

AI Research and
Development Kit

AI development board for AI researchers to develop customized AI solutions utilizing a variety of sensors

Robots and Autonomous
Systems

Can be used as a sensor and AI

computation module for autonomous robots such as AMR, AGV, etc.


Spec
AI Performance 12 TOPS Processor Qualcomm QCS 6490
CPU Qualcomm® Kryo™ 670 Appearance Material ABS
GPU Qualcomm® Adreno™ 643L Mounting Methods 1/4 - 20 - UNC TAP
DSP Qualcomm® Hexagon™ RGB Sensor IMX334 (Sony 8M Camera)
Supported OS Ubuntu Linux 20.04 LWIR Sensor FLIR LEPTON 3.5
Supported ROS ROS2 Foxy Flash LiDAR Sensor HYBO iTFS-110
Communication Options Ethernet 2 Port Power Used DC 12V/24V
Communication Protocols SSH, Debug USB2UART
ADB(USB)
Power Consumption 12Wh
